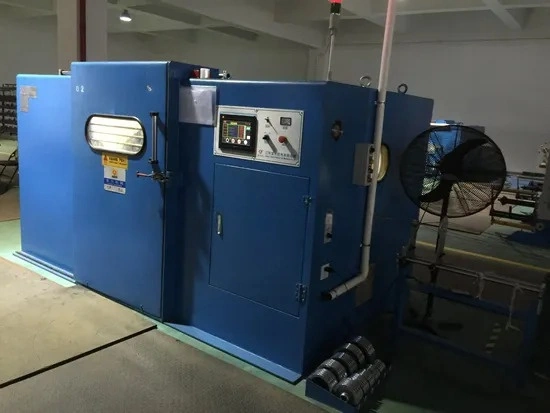

High-speed twisting and enameling machine for 0.08-1.7mm copper, tinned, and silver jacketed wires, ensuring constant tension and superior quality output.
Achieves a maximum rotation speed of 3000rpm (6000TPM) for high-efficiency production in demanding B2B environments.
Features PLC and touchscreen control with a magnetic powder clutch to guarantee constant wire tension from empty to full bobbin, reducing material stress and breakage.
Accommodates a wide range of single wire diameters (0.08mm to 1.7mm) and provides double twisting for core wires.
The machine is driven by a high-quality synchronization strap, and pitch is easily adjusted by changing the capstan wheel, minimizing downtime.
Built with an electromagnetic brake system and automatic stop function for broken wires, ensuring operational safety and protecting the final product.
Applicable for processing diverse materials, including bare copper wires, tinned wires, silver jacketed wires, and enamelled wires for versatile manufacturing.
Model Series: FC-500B / FC-650B / FC-800B
Single Wire Diameter Range: 0.08mm - 1.7mm
Stranding Section Area: 0.05mm² - 16mm²
Maximum Rotation Speed: Up to 3000rpm (6000TPM)
Control System: PLC with Touchscreen Operation
Certifications: ISO, CE
